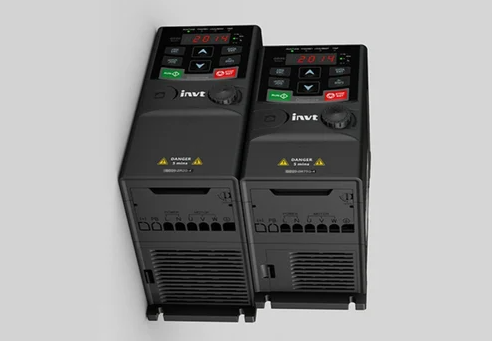

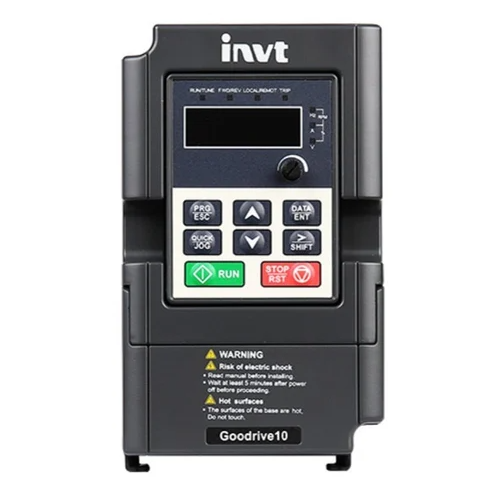

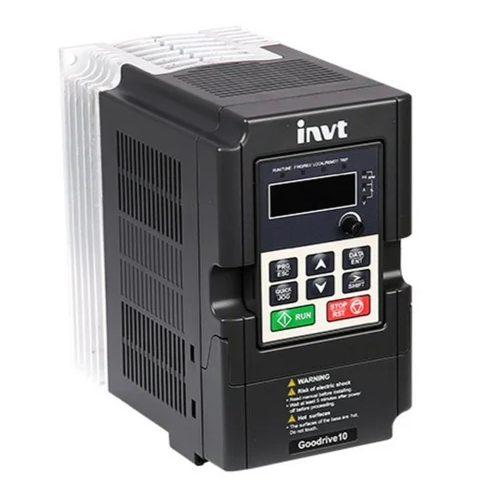

GD10 Series Mini VFD Drives
GD10 mini economical vfd drives are designed for common applications of small power OEM market, with various functions of PID, multistage speed, DC braking, Modbus communication and others. Its smaller size can further reduce the installation space (the size is about 15% smaller than similar products).
| Brand | INVT |
| Model Name/Number | GD20-09 |
| Input Voltage | 380V |
| Input Phase | 1 - Phase |
| Input Frequency | 50Hz |
| Cooling Method | Forced Air Cooling |
| Output Frequency | 150Hz |
| Control Mode | Space Voltage Vector Control |
| Motor Type | Asynchronous Motor |
| IP Rating | IP20 |
| Pollution Degree | Degree 2 |

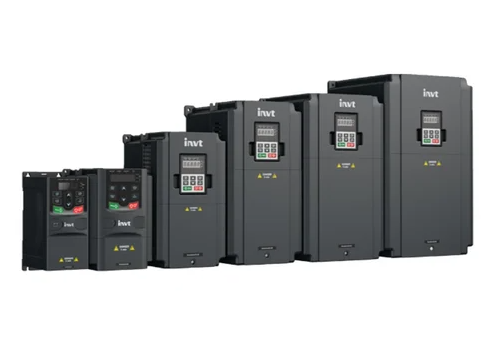

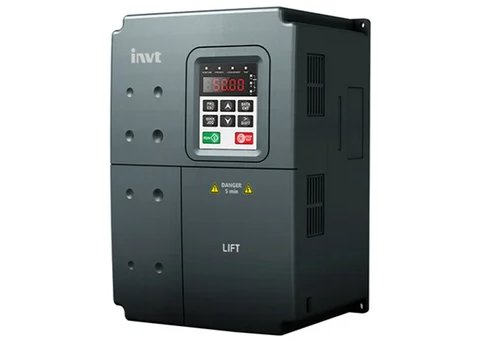

GD20-09 Series VFD for Crane
GD20-09 series VFD for crane is an open-loop vector control VFD that INVT develops for cranes based on the load characteristics and control requirements of electric hoists, European-style cranes, and small-tonnage gantry or bridge cranes.
Compliant with crane industry standards, integrated with crane-specific functions, and compact structured, the VFD achieves excellent performance, carries the built-in braking unit for the entire series, adopts the overall EMC design, and passes rigorous reliability testing, meeting the environment requirements on low noise and low EMI in the application sites, and greatly improving product reliability.Power range: AC 380V (-15%)–440V (+10%) 0.75–37kW
Contact our experts today for a free consultation or immediate support. We're here to help you find the perfect solution.
| Brand | ABB |
| Input Voltage | 440 V |
| Input Phase | 3 - Phase |
| Output Current | 440 V |

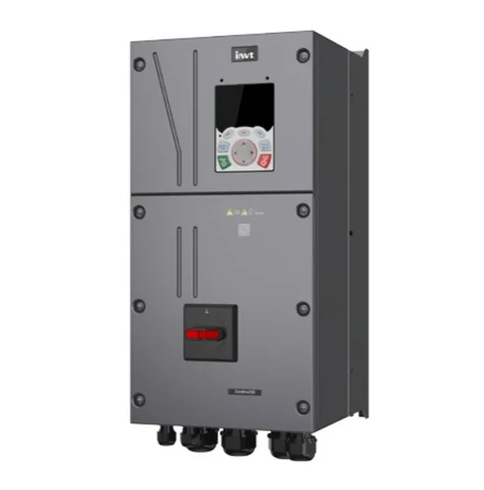

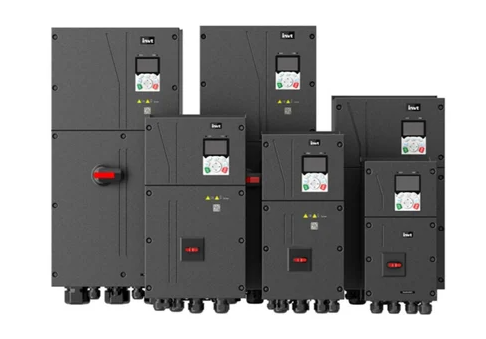

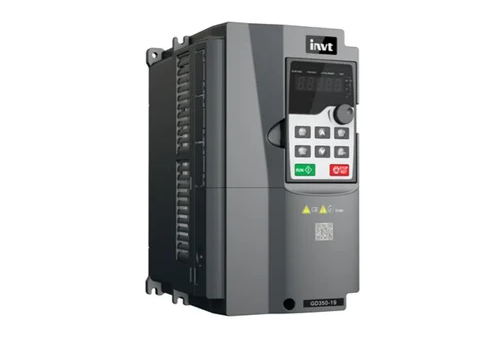

ABB GD350-19 Series is a robust Variable Frequency Drive (VFD) specifically engineered for complex crane and hoist applications. Designed to operate on a standard 440V, 3-Phase input power supply, this drive is highly versatile, offering precise control for both open and close loop systems. It is capable of delivering a controlled output voltage of 440V, ensuring reliable and safe management of motor speed and torque for lifting and positioning tasks.
Product Details:

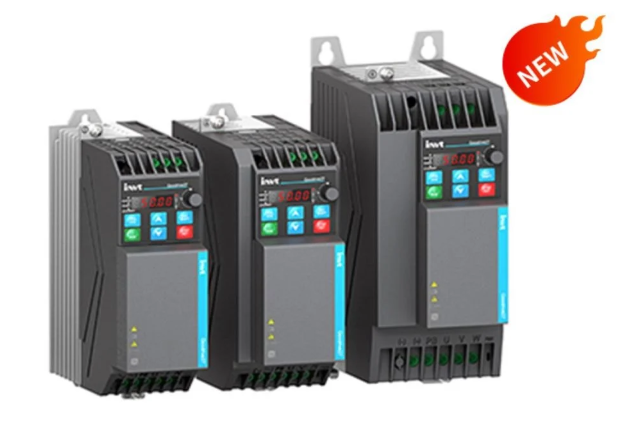

GD27 is a newly designed smart VFD, in compact structure, with excellent performance and rich functions, simple and easy to use. It can be widely used in industries such as woodworking, textiles, food, printing and packaging, plastics, HVAC, logistics and transportation equipment.Power range:
AC 1PH 200V ~ 240V 0.4kW~2.2kW
AC 3PH 200V ~ 240V 0.4kW~4kW
AC 3PH 380V ~ 480V 0.75kW~7.5kW

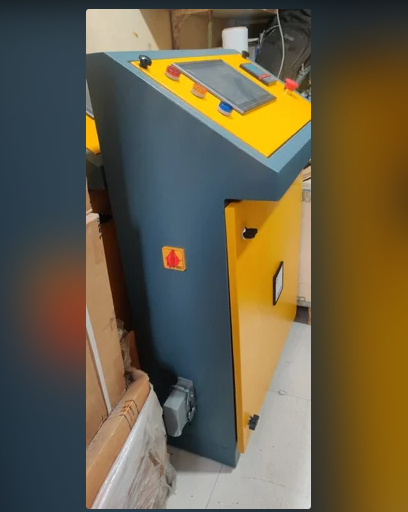

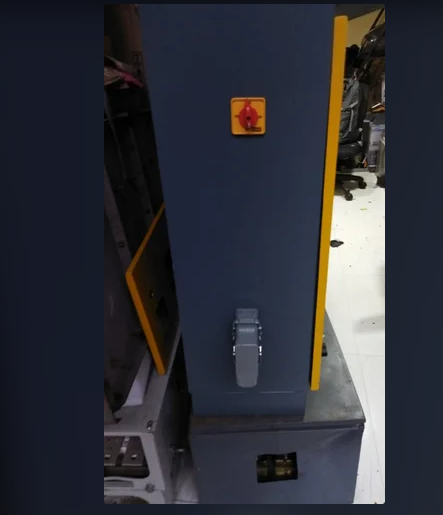

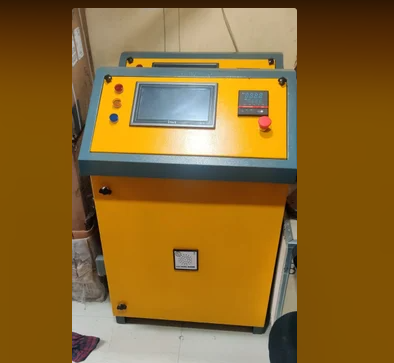

INVT Rotoplast Machine Panel is a heavy-duty, Automatic electrical control panel designed for the power and control demands of rotomolding equipment. Operating on a Three-Phase, 440V Rated Voltage supply, this panel is built to handle substantial electrical loads, with a robust Rated Current capacity of Up to 5000 Amps. The enclosure is constructed from durable MS (Mild Steel) to provide industrial-grade protection and housing for the sophisticated INVT automation components that manage the precise heating, rotation, and cooling cycles inherent to the rotomolding process.
| Brand | INVT |
| Input Voltage | 440 V |
| Input Phase | 3 - Phase |

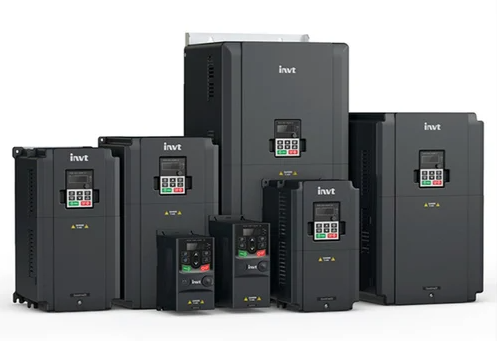

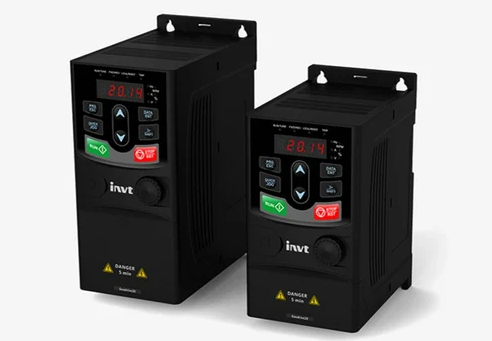

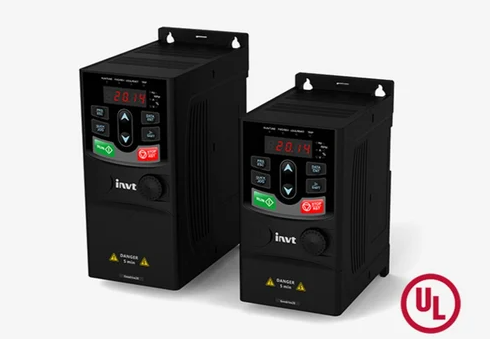

| Model Name | GD20-UL Series |
Product Details:
Power Input:
Input Voltage (V):
AC 1PH 200V - 240V (Rated voltage: 230V)
AC 3PH 200V - 240V (Rated voltage: 230V)
AC 3PH 380V - 480V (Rated voltage: 400V)
Allowable Voltage Fluctuation: -15% to +10%
Input Current (A): Refer to section 2.7 "Rated Specifications"
Input Frequency (Hz): 50Hz or 60Hz (Allowed range: 47 - 63Hz)
Power Output:
Output Voltage (V): 10 - input voltage
Output Current (A): Refer to section 2.7 "Rated Specifications"
Output Power (kW): Refer to section 2.7 "Rated Specifications"
Output Frequency (Hz): 0 - 400Hz
Control Mode:
SVPWM (Space Vector Pulse Width Modulation)
SVC (Sensorless Vector Control)

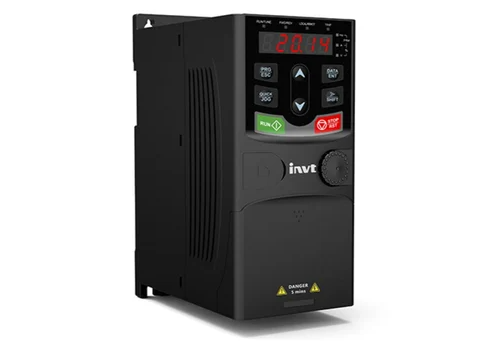

| Brand | INVT |
| Input Voltage | 440 V |
| Input Phase | 3 - Phase |
| Model Name | GD20 |
| Motor Power | 440 V |
| Shape | Rectangle |
| Color | Black |
Power Input: 1) Input Voltage (V):
AC 1PH 220V (-15%) - 240V (+10%)
AC 3PH 220V (-15%) - 240V (+10%)
AC 3PH 380V (-15%) - 440V (+10%)
Features:
Excellent Control Performance
Adopting PG-free vector control mode, excellent control performance
Excellent vector control performance
